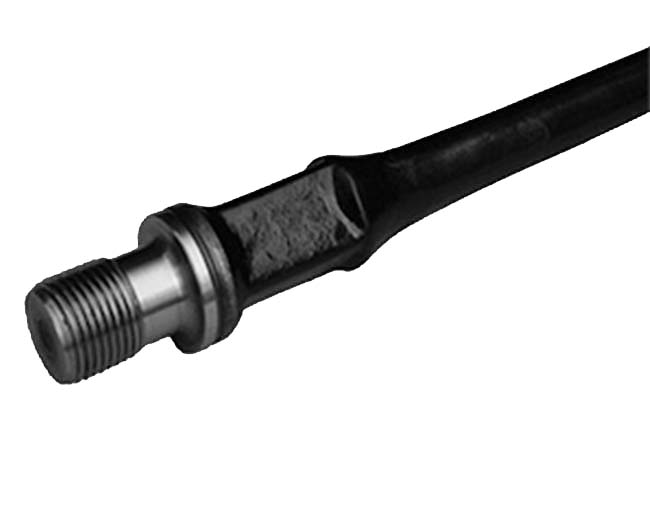

Grade HY Sucker Rod

Share

Grade HY Sucker Rod is a high strength sucker rod, and is mainly used in deep well,the surface hardened layer has a stable martensite strip structure, high tensile strength,It has the characteristics of high tensile strength, good wear resistance, high torsion strength and long service life.

Grade HY Sucker Rod Description

Grade HY SucGrade HY Sucker Rod is a high strength sucker rod, and is mainly used in deep well,the surface hardened layer has a stable martensite strip structure, high tensile strength,It has the characteristics of high tensile strength, good wear resistance, high torsion strength and long service life.

Grade HY Sucker Rod Specification

Sucker Rod Nominal ValueΦ165/8"Φ193/4"Φ227/8"Φ251"Φ2911/8"
Rod Body Diameter 15.88+0.18-0.36
(0.625+0.007-0.014
19.05+0.20-0.41
(0.750+0.008-0.016
22.23+0.20-0.41
(0.875+0.008-0.016
25.40+0.23-0.46
(1.000+0.009-0.018
28.58+0.25-0.51
(1.125+0.010-0.020
Outer Diameter Of External Thread Shoulder 31.8+0.13-0.25
(1.250+0.005-0.010
38.1+0.13-0.25
(1.500+0.005-0.010
41.3+0.13-0.25
(1.625+0.005-0.010
50.8+0.13-0.25
(2.000+0.005-0.010
57.2+0.13-0.25
(2.250+0.005-0.010
Wrench Width
±0.8(±0.031
22.2(0.875)25.4(1.000)25.4(1.000)33.3(1.313)38.1(1.500)
Wrench Length31.8(1.250)31.8(1.250)31.8(1.250)38.1(1.500)41.3(1.625)
API Rod Length
±50(±2.0
508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
508(20)
1118(44)
1727(68)
2337(92)
2946(116)
7518(296)
9042(356)
Domestic Rod Length±50900,1400,1900,
2400,2900,3400,
7900,9900
900,1400,1900,
2400,2900,3400,
7900,9900
900,1400,1900,
2400,2900,3400,
7900,9900
900,1400,1900,
2400,2900,3400,
7900,9900
900,1400,1900,
2400,2900,3400,
7900,9900
Upset Flange Diameter31.1+0.13-3.17
(1.219+0.005-0.125
35.7+0.13-3.17
(1.406+0.005-0.125
38.1+0.13-3.17
(1.500+0.005-0.125
48.4+0.13-3.17
(1.906+0.005-0.125
55.6+0.13-3.17
(2.188+0.005-0.125
AR±3.2(±0.12547.6(1.875)57.1(2.250)66.7(2.625)76.2(3.000)85.7(3.375)
CR+1.59-0.40
+0.063-0.016
3.2(0.125)3.2(0.125)4.8(0.188)4.8(0.188)4.8(0.188)

Grade HY Sucker Rod Mechanical Properties

Mechanical Properties Of Grade HY Sucker  Rod
GradeMinimum Yield Strength(0.2% Residual Deformation)Minimum Tensile StrengthMaximum Tensile StrengthElongation200mm%Reduction Of Area Z%Surface Hardness HRCCore Hardness HBFatigue Life

psiMPapsiMPapsiMPa≥13≥50

≥1.0X106
HY//1400009651733391195//≥42≥224
